Chassis work
Step 16: Transformer bolts

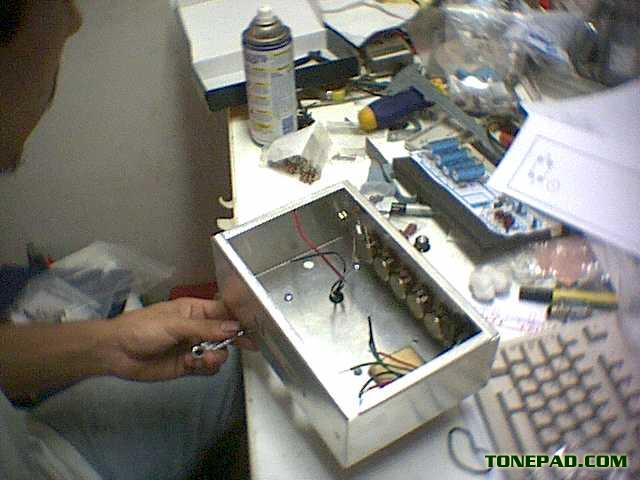

I decided I would put the output transformer's holding bolts in the other direction. Nut is outside. I did this to make the most of the inside room of the chassis.
