Chassis work
Step 2: Using a template

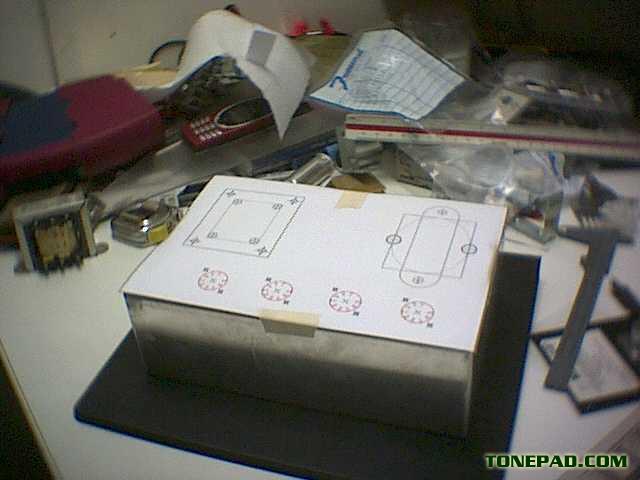

When I was satisfied with the component placement, I made a drawing with the exact location of the holes I had to drill, and attached it to the chassis with masking tape.
