Making a PCB using Press 'N Peel Blue
Step 2: Measuring the PNP

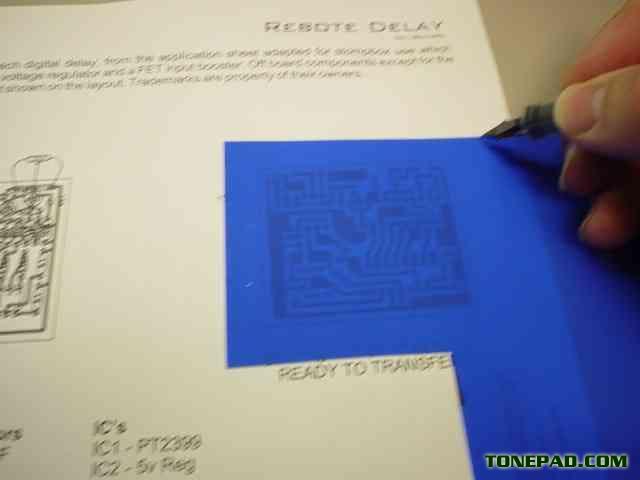

Measure and mark the PNP sheet, leaving about 1/2 inch on each side for taping and printer registration errors.
Previous: Printing the Layout   Jump to step:
 Next: Taping the PNP to the sheet
