Making a PCB using Press 'N Peel Blue
Step 6: Trimming the PNP fragment

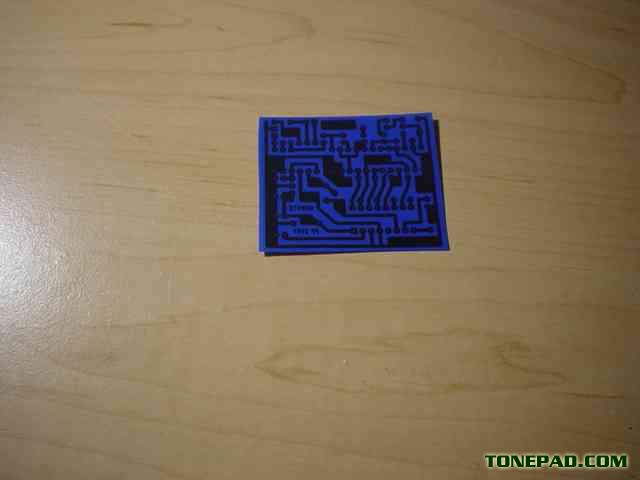

Remove the PNP fragment from the layout sheet, which is probably useless now. Trim the PNP sheet to remove the margin.
Previous: The printed sheet
Jump to step:
Printing the Layout
Measuring the PNP
Taping the PNP to the sheet
Printing onto PNP
The printed sheet
Trimming the PNP fragment
Marking the copper blank
After cutting the board
Sanding the edges
Cleaning the board
The polished board
Tools for applying the PNP sheet
Pre-heating the board
Affixing the PNP sheet
Ironing the sheet
Quenching the board
Lifting the PNP sheet
Look for spotty traces
The completed board
Next: Marking the copper blank
