18 Watter NOT clone
Step 10: Wiring sockets

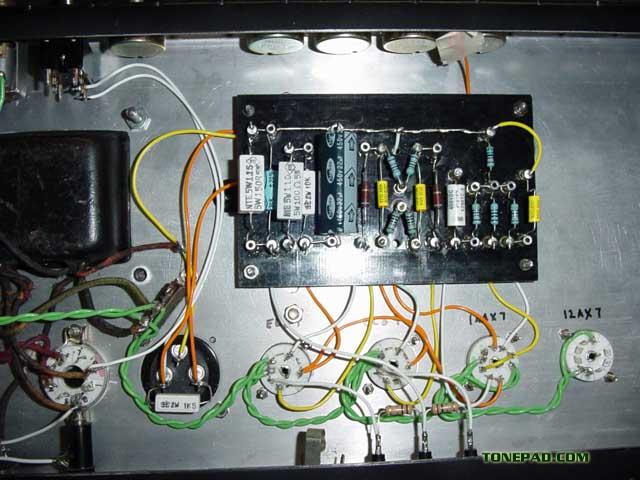

I have wired the tube sockets for the power amp, and a few more things here and there.

You can see the bias test points in the bottom of the image.
