Building a Tube Screamer
Step 12: Jacks

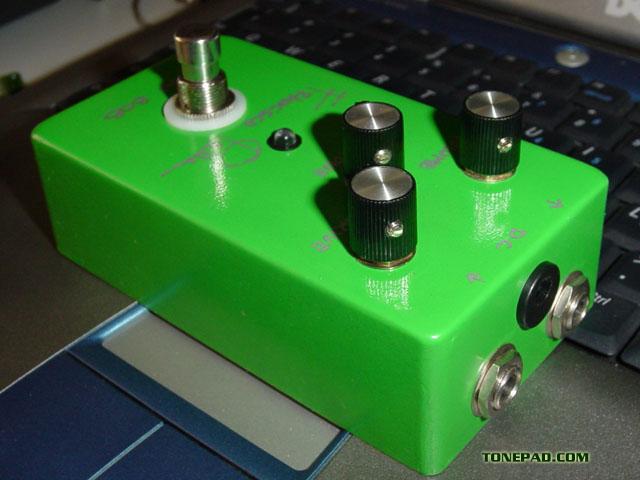

The jacks are all placed on the top end of the box, I personally prefer this because it saves space on the pedalboard, some people prefer them on the sides, it can be easily done that way too.
Previous: Controls   Jump to step:
