Building a Tube Screamer
Step 4: Large capacitors

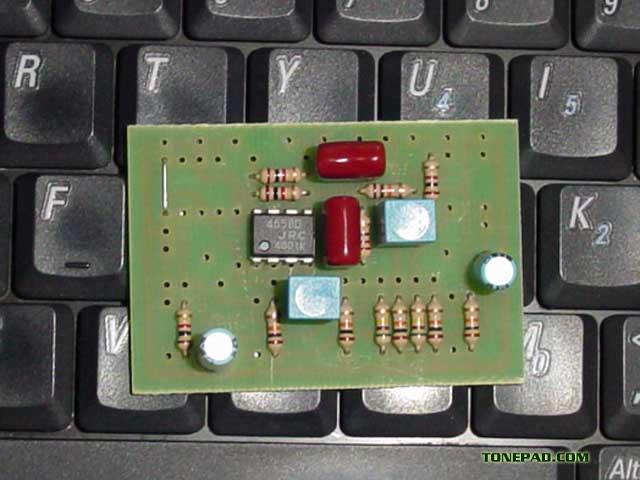

The large film capacitors have been soldered to the board, also the mojo JRC4558, I didn't use a socket here, but you should.
