Building a Tube Screamer
Step 9: Potentiometers

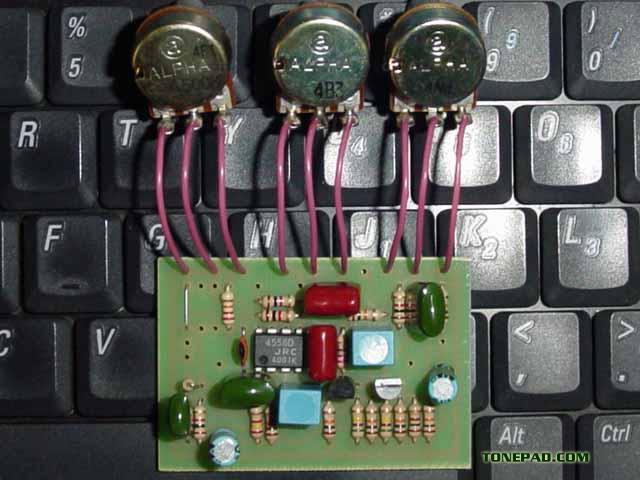

Potentiometers are now soldered to the wires. Notice the clean wiring that placing the offboard component pads on the edge of the board facilitates.
Previous: Pot wiring   Jump to step:
 Next: Enclosure
