Ross Compressor

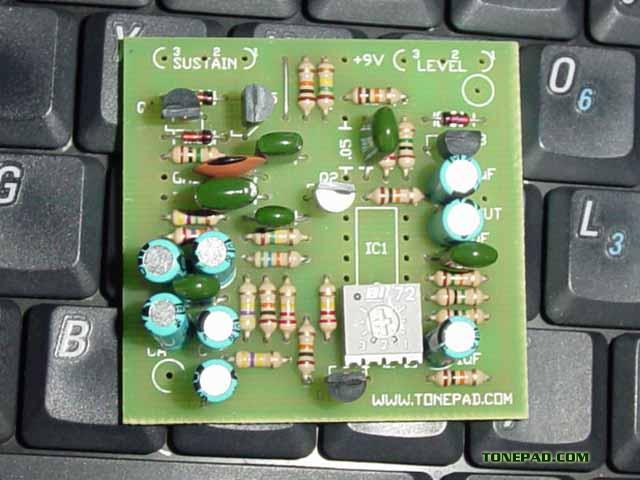

Step 3: Almost completed
Most of the parts are now soldered to the pcb. Again, I suggest you use sockets for the transistors unless you're really confident on your soldering skills. (Single inline sockets are available at SmallBear, you break as many as you want)
Previous: Resistors   Jump to step:
 Next: Potentiometer wires
