Ross Compressor
Step 5: Solder side

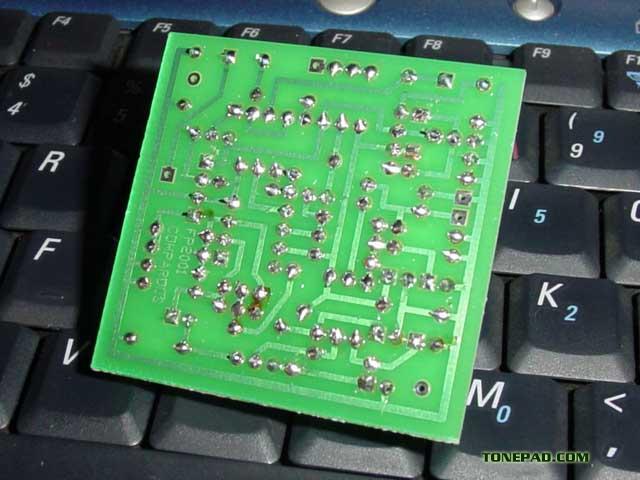

Solder side of the board with most of the stuff already soldered. The solder mask makes for very easy soldering without unwanted solder bridges, however, if the pedal didn't work, here's the first place to look for problems.
Previous: Potentiometer wires   Jump to step:
 Next: Potentiometers
