Populating an amp board
Step 1: Trying layout

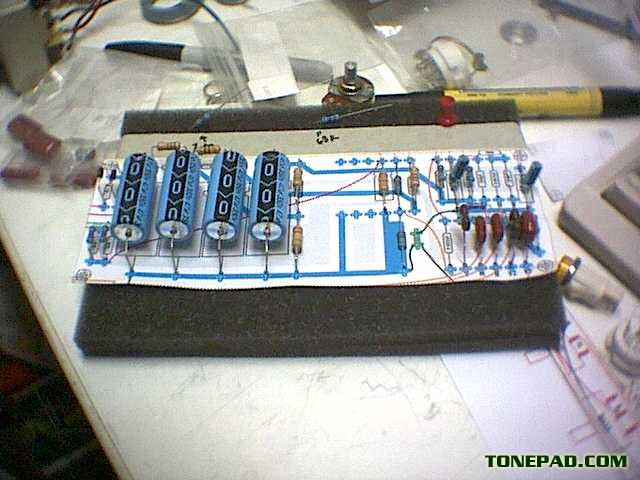

I made a 1:1 print of the layout and set it on top of a 1/2 inch foam with some masking tape. I then inserted the components thru the paper to see how they would fit. This helped me space the pads better and see possible problems. This is also very useful for measuring the values of the components before installing them.
