Populating an amp board
Step 3: Populating

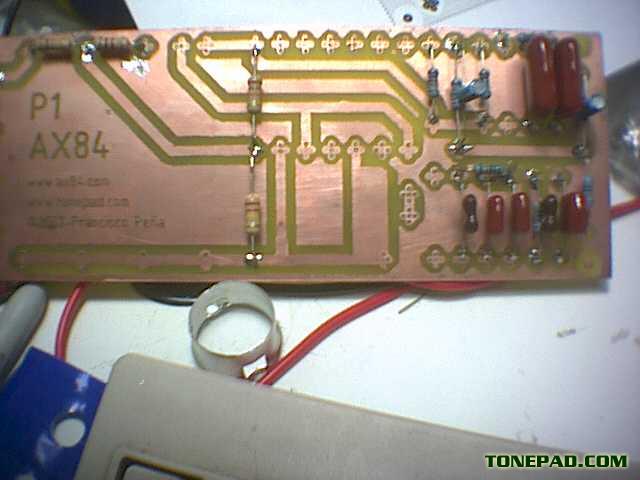

The board is etched, and some of the components are soldered in it. When I was designing this pcb, I decided I would solder the components on the copper side, for easier tweaking once the board was installed.

Jump to step:
