Populating the chassis
Step 10: Pots wired

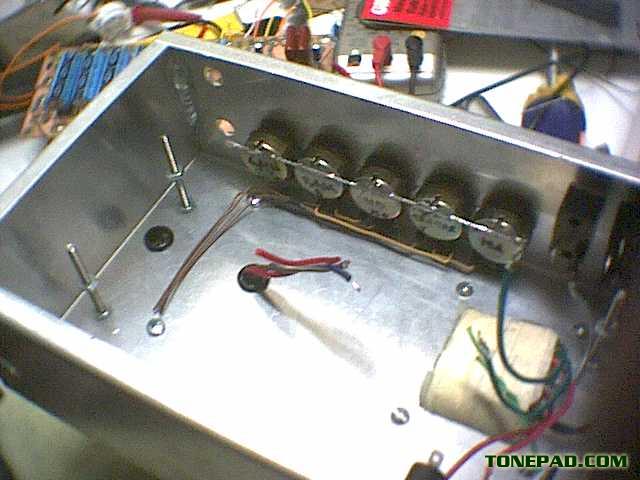

Potentiometers are wired, notice the extra long wires, these will be connected to the board later.

Previous: Filaments wired   Jump to step:
 Next: AC wired 1
