Modifying a TS9 to TS808
Step 11: A properly desoldered pad

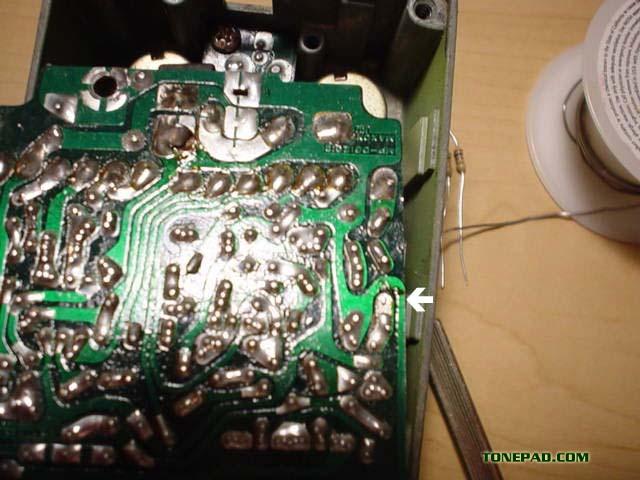

This is what each pad should look like. There should be a thin coating of solder that remains, but the component lead should be easily visible. You should also be able to see the hole in the board, although it isn't clear in this photo.
