Modifying a TS9 to TS808
Step 6: Removing the final screw

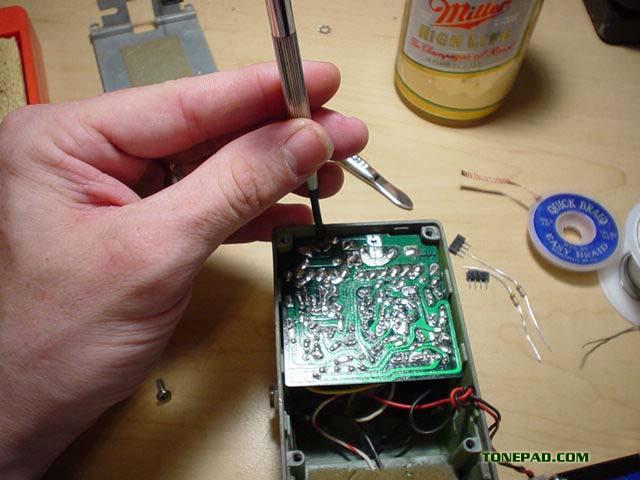

Remove the fifth and final screw that holds the board in place. All 5 screws are identical, so don't worry about mixing them up.
