Modifying a TS9 to TS808
Step 9: Noting the resistors

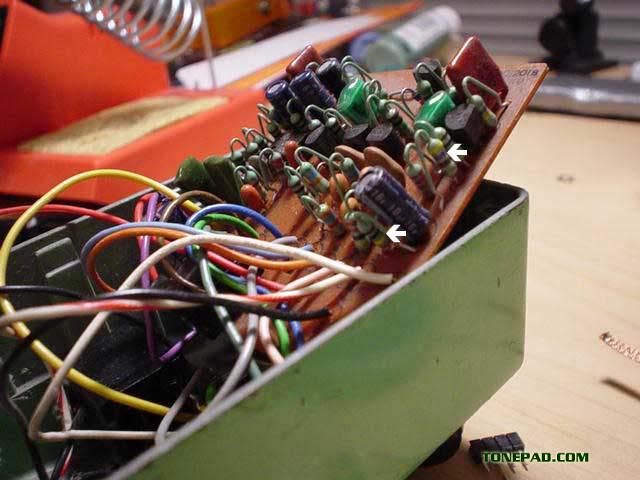

In this photo, taken from the right, we can see the two resistors that must be replaced. The one higher up is 470 ohms (yellow-purple-brown color code), and the lower one is 100k (brown-black-yellow color code).
