Making a PCB using Press 'N Peel Blue
Step 16: Quenching the board

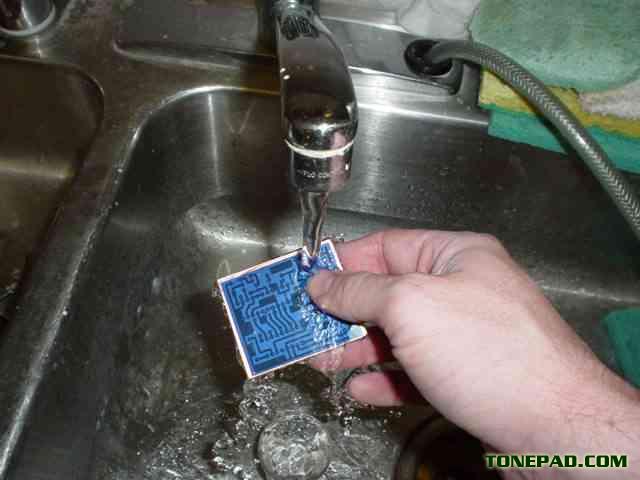

Run the board under cold water to cool it. Let the board get back down to room temperature, or even below.
