Making a PCB using Press 'N Peel Blue
Step 17: Lifting the PNP sheet

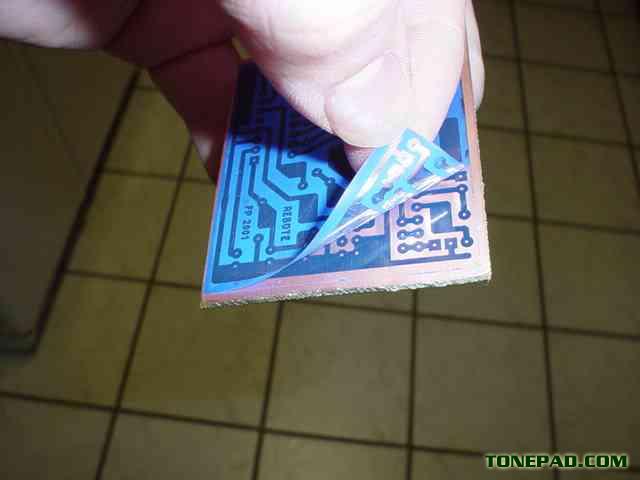

Carefully lift off one corner of the PNP sheet. Check for bad traces. If there are a ton of them, you can lay the sheet back down and iron some more. As you can see, everything looks good so far.
