Making a PCB using Press 'N Peel Blue
Step 18: Look for spotty traces

Look for any traces that may be incomplete or thin. These should be easy to spot by looking at the PNP sheet that you removed; look for dark toner that remained on the sheet.

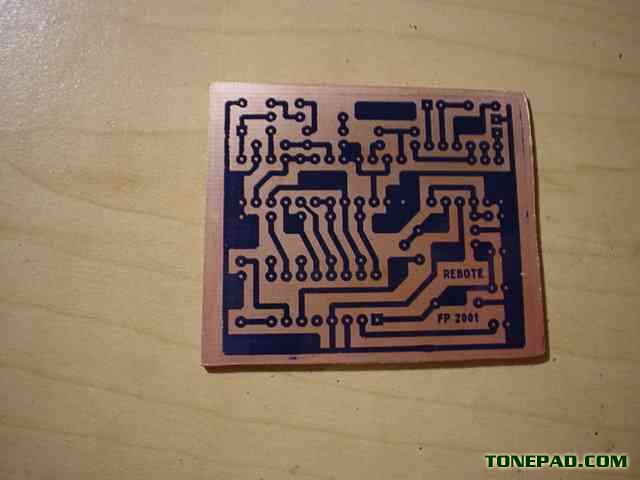

If you look carefully, you can see some areas in the upper left where the traces are not as solid as they should be. You can touch these up using Sharpie, and you can also connect traces that are broken.
