Making an amp chassis out of a computer case
Step 3: Drawing the outlines

This chassis will be used for a P1 combo, and I'm planning on the final dimensions being 12" x 5" x 2".

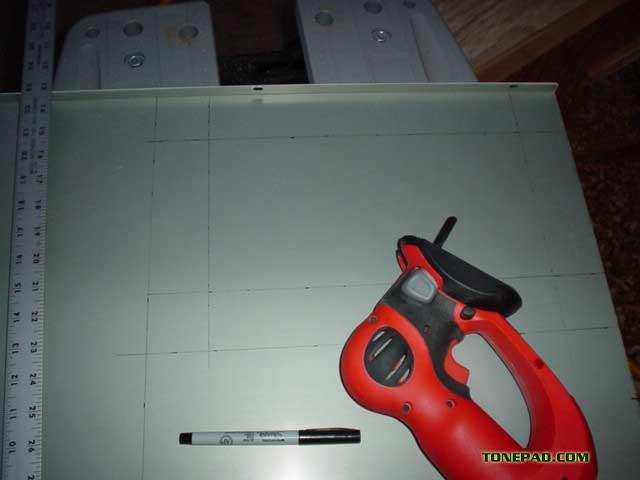

Here I've marked out my cutting and scoring lines. I'm taking advantage of two of the pre-cut edges of the case.

The inner rectangle is 12" x 5", and there is a 2" perimeter that will be folded up to become the sides.
