Modifying a TS9 to TS808
Step 17: Desoldering the IC

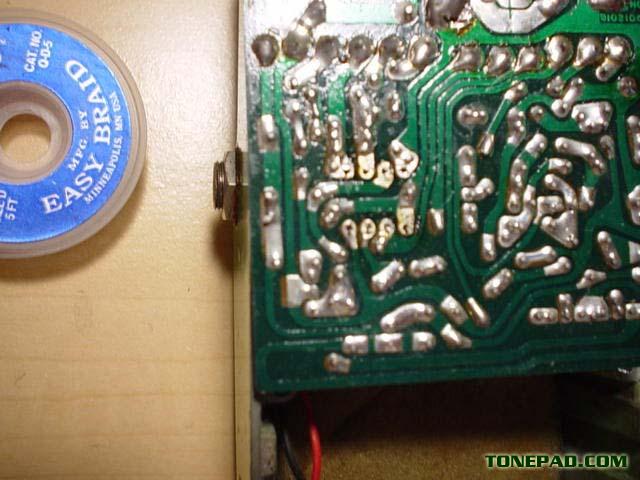

This is what the solder side should look like after desoldering all 8 pins of the IC. Notice how we can clearly see each lead and the hole itself.
