Modifying a TS9 to TS808
Step 16: Identifying the IC pads

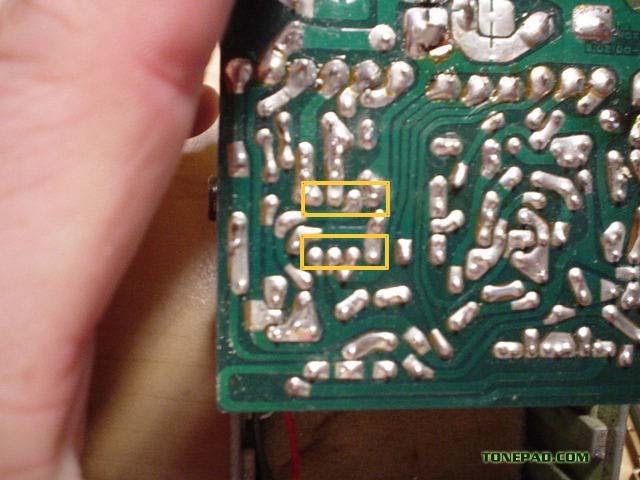

If you have a 4558 opamp, you can skip to the last step. If not, identify the 8 pads which hold the opamp in place. They are highlighted here.
