Modifying a TS9 to TS808
Step 22: Inserting the new chip

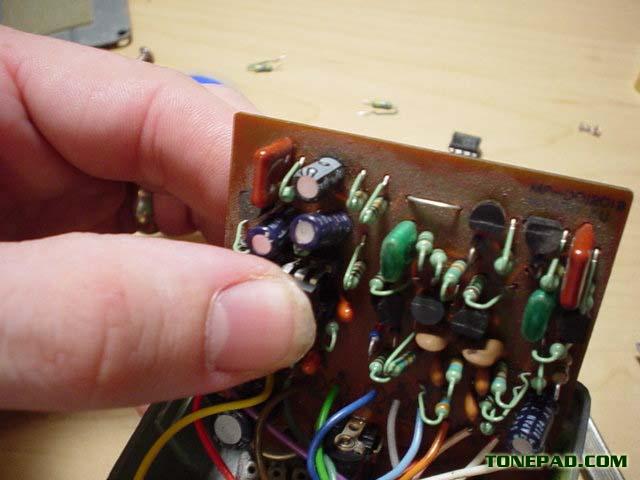

Gently push the chip into place. Make sure the marking on the chip (a dot in this case) is facing to the left. The board underneath the socket will have an outline of the chip indicating which end is which. Make sure that each pin of the IC is properly lined up with its socket hole. This should not require much force, but it will hold the chip securely.
