Modifying a TS9 to TS808
Step 14: Bending the leads

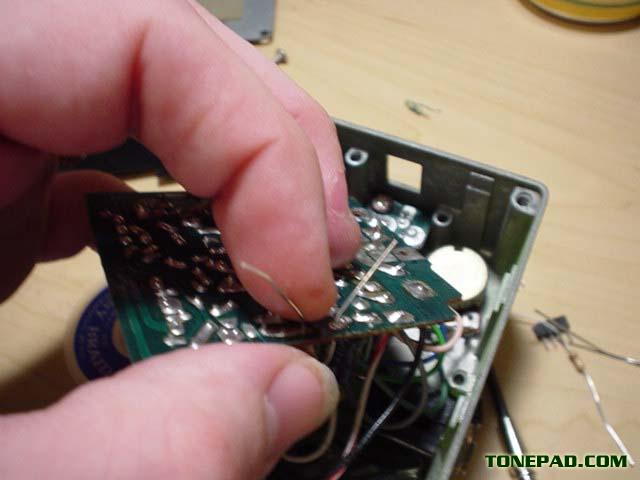

On the solder side of the board, bend the leads of the resistor to hold it in place.
