Modifying a TS9 to TS808
Step 15: Solder and clip

Solder the resistor into place. Hold the tip of the iron so that it touches where the lead and the pad meet. Hold it there for about 4 seconds, and then feed a small amount of solder into the joint where the lead meets the pad. Hold the iron there for a few more seconds, then remove it.

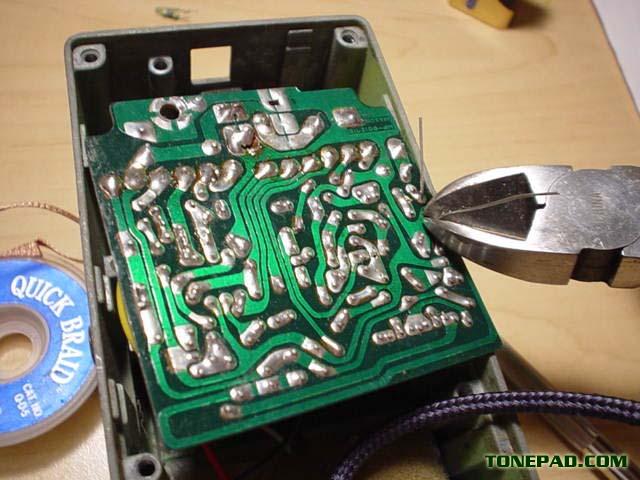

Finally, clip the excess leads off the resistor.

Repeat these steps to remove the 100k resistor and replace it with the 10k resistor.

Jump to step:
