Modifying a TS9 to TS808
Step 20: Soldering the socket

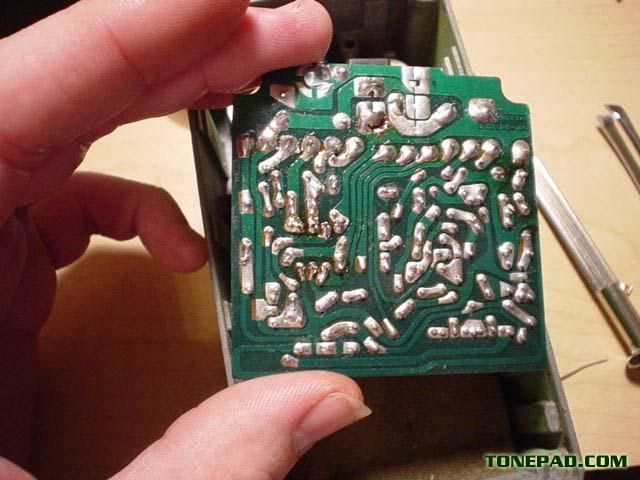

This is what the solder side should look like after soldering the socket in place. Some of the traces run close together, so watch for "solder bridges," which is when solder spans two traces that it should not span. If this happens, desolder the bridge.

Fear the hand.
